Grain Cleaning Equipment

The cleaning process is very important in the operation of complete flour milling plant. In order to ensure the quality of flour and cleaning effect, wheat flour milling plant or maize flour milling plant usually adopts a combination of cleaning equipment for cereals cleaning, including destoner, self-balancing vibrating screen, plane rotary screen, vertical thresher, horizontal thresher, wheat washing machine, magnetic separator, etc. (Read more: Fully Automatic Flour Mill Plant Price >>)

Grain Cleaning for Flour Milling Plant
Grain Cleaning for Flour Milling Plant

ABC Machinery offers various flour mill machines for different customers' request. At the same time, we also manufactures factory price grain cleaning machines to help customers set up a complete flour mill plant at one stop. If you are interested in setting up wheat flour mill plant or maize flour milling factory, it is better to have a understanding about the main grain cleaning machines!

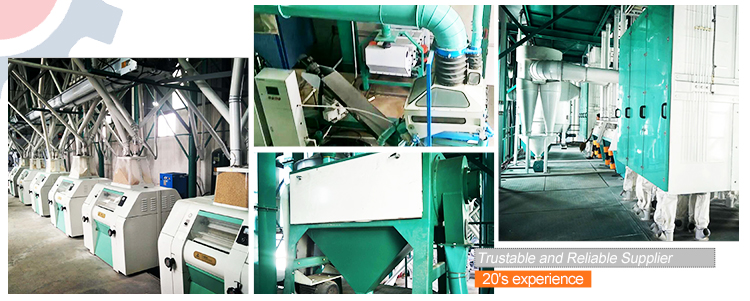

complete flour milling project
Setup Commercial Flour Milling Plant for Wheat/Maize

Buy Grain Cleaning Equipment for Wheat/Maize Flour Millling Plant

Reasonable and efficient grain cleaning machine can achieve a good effect in cleaning impurities, coupled with good flour mill machinery. The processed flour not only has good quality, but also can be graded.

TQLZ Vibrating Separator - Wheat/Maize/Other Grains

TQLZ Vibrating Separator is a new cleaning equipment that is designed with advanced technology. Its high efficiency, compact struction, easy maintenance and operation makes it BEST equipment for rice milling plant, flour milling factory, oil processing plant, chemical plant, food manufacturing plant and so on.

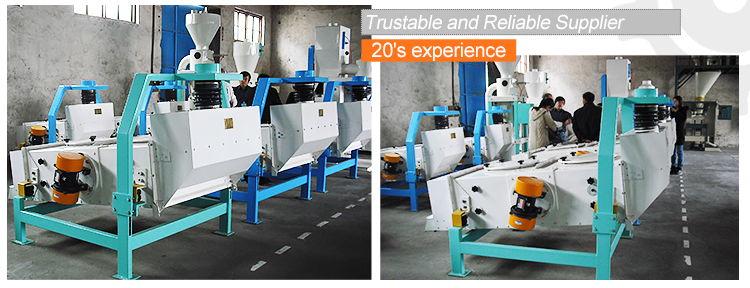

TQLZ Vibrating Separator
TQLZ Vibrating Separator

Model Screen Surface Size
(mm)
Capacity (t/h) Power
(kw)
Weight
(kg)
Size(L×W×H)
(mm)
Precleaning Cleaning
TQLZ60×100 600×1000 12 4 2×0.25 360
1240×1610×1455
TQLZ100×100 1000×1000 20 7 2×0.25 420 1640×1610×1455
TQLZ100×150 1000×1500 30 11 2×0.37 520 2140×1610×1455
TQLZ100×200 1000×2000 40 14 2×0.37 540 2640×1610×1455
TQLZ150×150 1500×1500 45 18 2×0.55 630 2140×2160×1455
TQLZ150×200 1500×2000 60 22 2×0.75 650 2640×2160×1455
TQLZ180×200 1800×2000 72 26 2×1.1 1000 2700×2480×1830

TQSF Series Gravity Grading Stoner - Wheat/Maize/Other Grains

Gravity Grading Stoner is a highly efficient and multi-functional wheat cleaning equipment. Under the synthetic action of vibrating are sifting and air-flow. It removes stones from the grain stream. The two layer screen design separates the heavy and light impurities completely and efficiently. The simple cleaning procedure improves efficiency, double vibrating motors driving, balanced running, optimized designing for better.

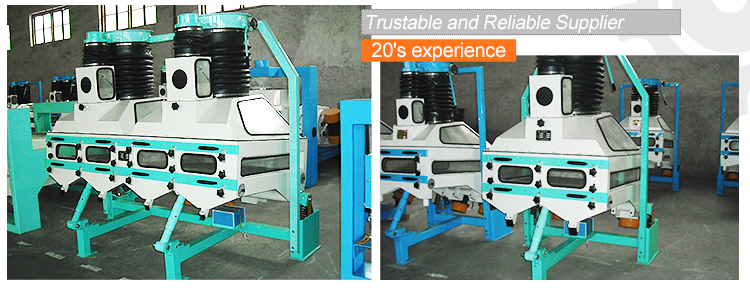

Maize Wheat Destoner
Maize Wheat Destoner

Model Screen width(mm) Capacity(t/h) Air aspiration speed(m³/h) Power(kw) Air pressure (Pa) Weight(kg) Size(mm)
TQSF63 630 3-5 4500 2*0.25 <980 280 1450*876*1800
TQSF80 800 5-7 6000 2*0.25 <980 340 1450*1046*1800
TQSF100 1000 7-9 8000 2*0.25 <980 400 1500*1246*1900
TQSF125 1250 9-11 10200 2*0.25 <980 500 1500*1496*1920
TQSF150 1500 11-14 12000 2*0.37 <980 600 1500*1746*1920
TQSF175 1750 14-18 15000 2*0.37 <980 680 1500*1996*1920
TQSF200 2000 16-20 17000 2*0.37 <980 720 1500*2246*1920
TQSF250 2500 20-22 20400 2*0.37 <980 980 1500*2796*1920

inquire about the price and cost

TQLM Series Horizontal Rotary Sieve - Wheat/Maize/Other Grains

Rotary Sieve can separate large impurities (such as stones, earth lumps, straw, and pager) and smaller impurities (loose earth, sand, small seeds) from grain by means of plane motion of the sieve box; it has a good sealing capacity and doesn’t pollute the air. With an automatically cleaning system, it completely separates all kinds of impurities with three layers of sifters and aspiration structure.

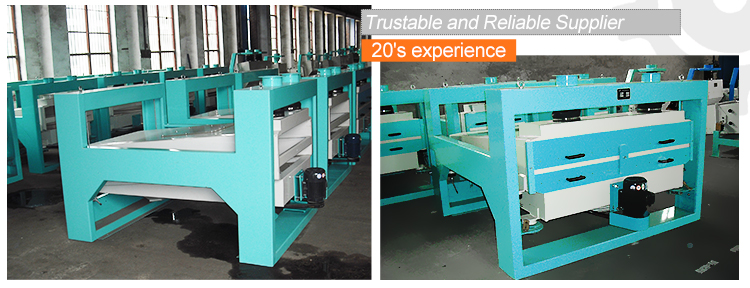

Wheat Maize Rotary Sifter
Wheat Maize Rotary Sifter

Model Screen Surface Size (mm) Capacity (t/h) Power (kw) Weight (kg) Size (L*W*H) (mm)
TQLM63 100×63 2-3 2×0.55 500 1355×936×946
TQLM80 150×80 3-5 2×0.75 635 2120×1265×1645
TQLM100 150×100 5-8 2×0.75 750 2120×1465×1645
TQLM125 150×125 8-12 2×1.1 885 2120×1715×1645
TQLM160 160×150 12-16 2×1.5 996 2120×2065×1645

FDMW Series Horizontal Wheat Scourer - Wheat Seeds

Wheat scourer is specially designed to improve wheat flour production in wheat flour miling plant. It digested and assimilated the technology of foreign advanced products in the same kind. It is suitable for the flour mill with dry method to Lear, rub, and scour the wheat to clear off the beard, mud in the grain from the surface and the soil, coal cinder and insects in it. It has good sealing, convenient maintenance, long bearing life and attractive design, etc.

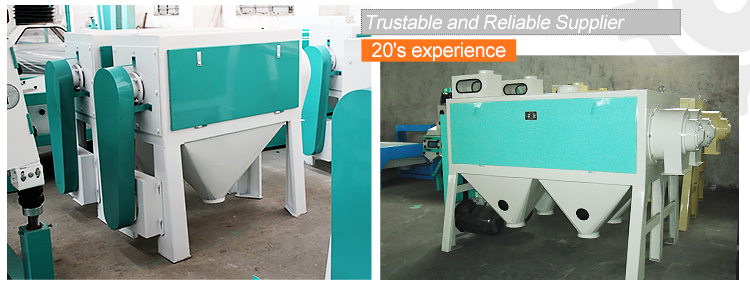

FDMW Series Horizontal Wheat Scourer
FDMW Series Horizontal Wheat Scourer

Model Capacity (t/h) Power (kw) Weight (kg) Size(L×W×H) (mm)
FDMW 40×100 5-8 5.5 650 2100×920×1680
FDMW 40×100×2 8-16 11 1300 2100×1200×1680
FDMW 40×150 8-12 7.5 750 2600×920×1680
FDMW 40×150×2 12-25 15 1500 2600×1200×1680

TFXH Circular Aspiration Cleaning Machine - Wheat/Maize/Other Grains

TFXH circular aspiration cleaning machine is a specialty equipment to separate impurities from the grain. It can be used solely or combined with other equipemnt. It has the advantages of twice closed circuit, circular aspiration, large subside chamber.

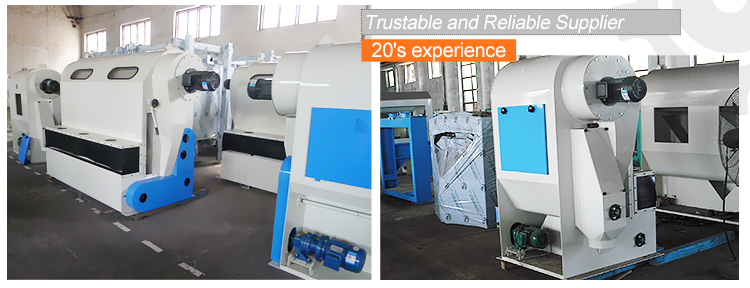

Circular Aspiration Cleaning Machine
Circular Aspiration Cleaning Machine

inquire about the price and cost

To setup a complete flour milling plant for commercial business, choosing the right grain cleaning equipment is also important. If you have no ideas about where and how to buy the good wheat seeds or grain cleaning equipment for your factory, please just contact us directly. We are professional grain processing equipment supplier!

Grain Cleaning Process in Flour Mill
Grain Cleaning Process in Flour Mill

Buy Factory Price Grain Cleaning Machine Setup Flour Milling Plant

Grain cleaning equipment manufacturer – factory price grain cleaning machines for wheat/maize flour mill plant setup: buy grain cleaning machine from flour mill machinery manufacturer or supplier at factory price, get FREE technical instruction grain cleaning process and business plan to set up flour milling plant project in Kyrgyzstan, Pakistan, Bangladesh, Uzbekistan, Saudi Arabia, etc., at low cost.
